Roller diameter parameters:
1,corrugated roller:up￠320mm down￠316mm pressure roller:￠324mm
2 ,glue roller:￠242mm fixed paste roller: ￠140mm preheat roller:￠402mm
powered motor parameters:
1.main frequency drive motor:18.5KW rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:11KW rated voltage:380V 50Hz Continuous (S1) working standard
3,glue reducer:100W rated voltage:380V 50Hz Continuous (S2) working standard
4,glue gap motor:250W rated voltage:380V 50Hz short(S2) working standard
5,glue pump motor:2.2KW rated voltage:380V 50Hz Continuous (S1)working standard
Auxiliary equipment:
1,Special pulley crane configuration tile roll maintenance, convenient to use when maintenance tile roll, and fast.
2,Configuring an external guide pulley crane to lengthen the trip, in order to successfully remove the line outside the repair parts.

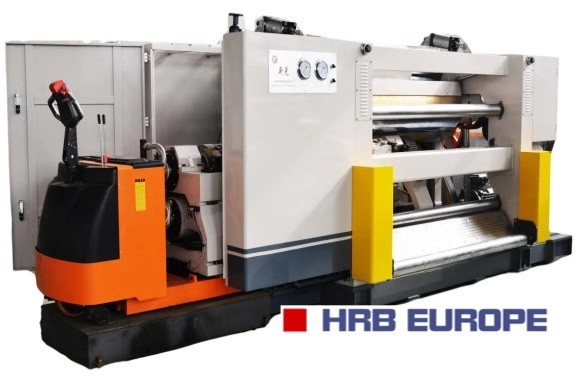

SF-360E cassete single side corrugated machine
Main roller:
content 360mm
pressure roll, 415mm
pre-heating roll, 400mm
Use negative pressure design, low heat loss, so that the core paper can be evenly pressed and attached to the corrugated roller surface, so that the corrugated better molding, because the pressure is uniform, the corrugated top can be better, evenly coated with glue, the core paper can be evenly pressed and attached to the corrugated roller surface, because the pressure is uniform, the corrugated top can be better and evenly coated with glue. Make one-sided corrugated paper fit better.
A quick roll change, 10 minutes, the replacement of corrugated rollers towed by a cart, the whole set of corrugated rollers into the machine, fixed to the machine base, only a button switch can quickly and easily complete the corrugated roll replacement.
Corrugated roller using 48Crmo high-quality alloy steel, after heat treatment, the surface after grinding tungsten carbide treatment.
Corrugated roller, pressure roller and so on adopt the air bag control system with high stability, at the same time have the pressure control buffer effect.
The glue quantity control adopts the electric adjustment, the insulation device is electric, the glue coating system can run independently when the main machine stops, and prevents the glue from drying up.
If you want to know more detail pls contact me, I can provide the good price for you!
