Auto Flute Corrugated Cardboard Sheet Laminator Machine CE Standard

Name: Auto Flute Corrugated Cardboard Sheet Laminator Machine CE Standard
Brand: HRB PACK
Price: 28 USD

Wholesale Auto Flute Corrugated Cardboard Sheet Laminator Machine CE Standard from china suppliers

Brand Name : HRB PACK

Model Number : HRB-1300A

Certification : CE

Place of Origin : HRB-PACK

MOQ : 1 Set/Sets

Price : $28,000.00 - $32,000.00 / Sets

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Sets per Month

Delivery Time : 30days

Packaging Details : Plastic film wap with auto flute laminator machine

Type : Laminating Machine

Driven Type : Electric

Dimension(L*W*H) : 12x2.2x2.7m

Function : Pressing

Keyword : Auto flute laminator

Automatic Grade : Automatic

Usage : corrugated carboard

Color : Customer's Request

Speed : 0-100 piece/min

Contact Now

Flute laminator

Product Description

Major feature:

1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.

Parameter

Model	HRB-1300A	HRB-1600A
Max size of cover face	1300X1200mm	1600X1200mm
Mix size of cover face	400mmX400mm	400mmX400mm
Economic speed	0-120 piece/min	0-100 piece/min
Precision	±1.5MM	±1.5MM
Power	15kw	15kw
Size	12m x 2m x 2.4m	12m x 2.3m x 2.4m
Weight	About 4.5T	About 5.5T

Main Electrical

No	Name	Brand	Add
1	SERVO MOTOR	DELTA	TAIWAN
2	AC DRIVE	DELTA	TAIWAN
3	INVERTER	DELTA	TAIWAN
4	MAIN MOTOR	MENGNIU	CHINA
5	TOUCH SCREEN	MCGS	CHINA
6	PLC	DELTA	TAIWAN
7	TRANSFORMER	RENMIN	SHANGHAI
8	OTHER ELECTRIC SYSTERM	CHINT	CHINT
9	BEARING	Rhonda	CHINA
10	BELT	MEGAPOWER	ITALY
11	COMPRESSOR	JINZENG	CHINA

Product details

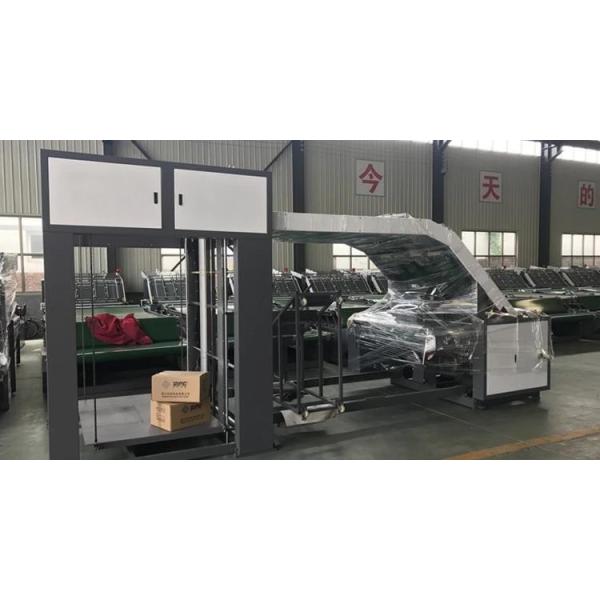

Auto Flute Corrugated Cardboard Sheet Laminator Machine CE Standard

Factory Photo

Company Information

HRB-PACK is located in the south of Beijing and north of Jinan, so we have convenient land and water facilities. We are a professional enterprise with a large scale to produce carton machinery and printing machinery.

Our company has 80 workers including 10 engineering and technical staff members with senior titles. Our company has capability of product design and perfect quality guarantee system. With perfect technology, complete machine, high specialization degree, rich manufacturing experience, strong technical force, advanced overhauling measures and integrated managing system, our company is like an up-and-coming youngster in the carton printing machinery industry in China. Part of the printing machines made by our company are exported to Southeast Asia, Western Asia, the Middle East and South America

With a large quantity of models and complete specifications, our products can meet the demand of different clients. With the spirit of keeping improving, we pursue perfection constantly. Our company actively carries out the overall quality managing work. Because of the beautiful and tasteful appearance, compact and careful technology, reasonable price and perfect after-sale service, our products have won the trust and praise from clients all over the country for many years.

Regarding vigorously developing the carton industry in Chinaas our task, we'll sincerely cooperate with clients and meet their demands with better quality products and perfect after-sale services.

--------DONGGUANG HAIRUIBAO CARTON MACHINERY CO.,LTD

FAQ

1.Top board/Paper thickness- minimum and maximum

Min:175g, Max:350g

Top paper must be flat

2. Ply thickness and quality can feed in this machine

Min: 2ply E flute Max: 4ply A+Aflute less than 10mm

Corrugated sheet must be flat

3. Servo Specification

1.5KW SERVO MOTOR, Brand: Shilin or from TAIWAN

4. Electrical parts/ PLC/Motor brand

Adopt 3 Inverter, 1 PLC, brand:Shilin and DELTA from TAIWAN

5. What component will come along with machine and what other equipment has to arrange by customer

Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.

Customer arrange: Glue, top paper, corrugated sheet, wire

6. Required Power supply inputs

14kw

7. What support you will give in first Installation

Operation book and circuit diagram.

8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list.

I will give you some spring as free spare parts. The others are not easy to broken.

9. Specification of glue applying system and glue circulatory system.

Automatic gluing, and automatic circulatory.

10. Scope of standard warranty.

1 year warranty for the machine. But not include electric parts.
